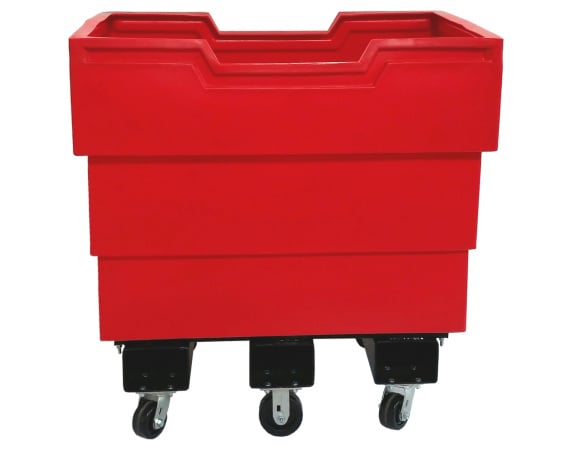

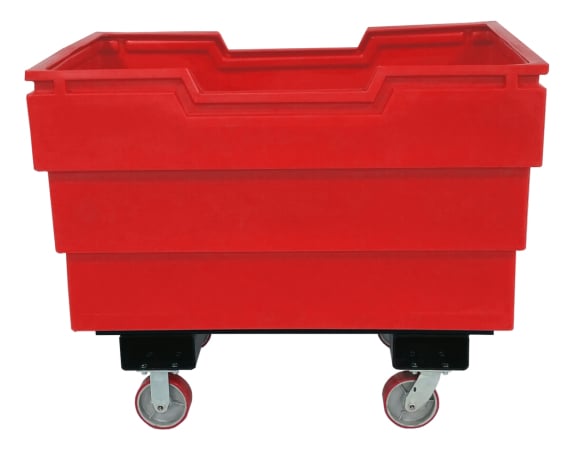

The Grizzly SD Rotator Cart is the same tough poly box truck as the standard Grizzly SD, with one addition that changes how you unload it: fork pockets. The 3″ x 6″ fork tubes let a rotating forklift pick it up and dump the entire load in one shot, without anyone having to touch it by hand. Roll it where you need it on casters, fill it up, then tip it at the dump station. At 43.5″ L x 28.5″ W x 40″ H, it holds 21 cubic feet and up to 750 lbs.
Standard Colors
| Features |
|---|
| Lift and dump with a rotating forklift |
| 3″ x 6″ fork tubes |
| Casters are bolted through steel |
| Base won’t split, warp or delaminate |
| Reinforced lip |
| Phenolic casters |
| Specifications | |
|---|---|
| External Dimensions | 43.5x28.5x40″ |
| Length | 43.5 in. |
| Width | 28.5 in. |
| Height | 40 in. |
| Internal Volume | 21 Cubic Feet, 157 Gallons |
| Weight Capacity | 750 lbs. |
| Options | |
|---|---|
| 12 gauge steel floor liner | YES |
| Caster upgrades | YES |
| Thicker Plastic | YES |
| Custom caster patterns | YES |
| 4 caster configuration | YES |
| Custom decals and graphics | YES |
| Additional colors | YES |
The 40-inch height accommodates the fork tube base while still fitting through standard plant doorways. The steel base is bolted through, not plywood, so it won't warp or delaminate when you're rolling it through wet yards or leaving it outside. Casters are bolted through steel. The rotationally molded body takes the kind of daily abuse that comes with moving scrap and recyclables shift after shift.
This cart is common in metal recycling and manufacturing operations, where the collection happens at the floor level, and the dump happens centrally. Operators move it by hand to wherever material needs to be gathered, fill it, and then a forklift with a rotator attachment empties it without tipping the cart over manually or involving extra labor. One person, one motion.

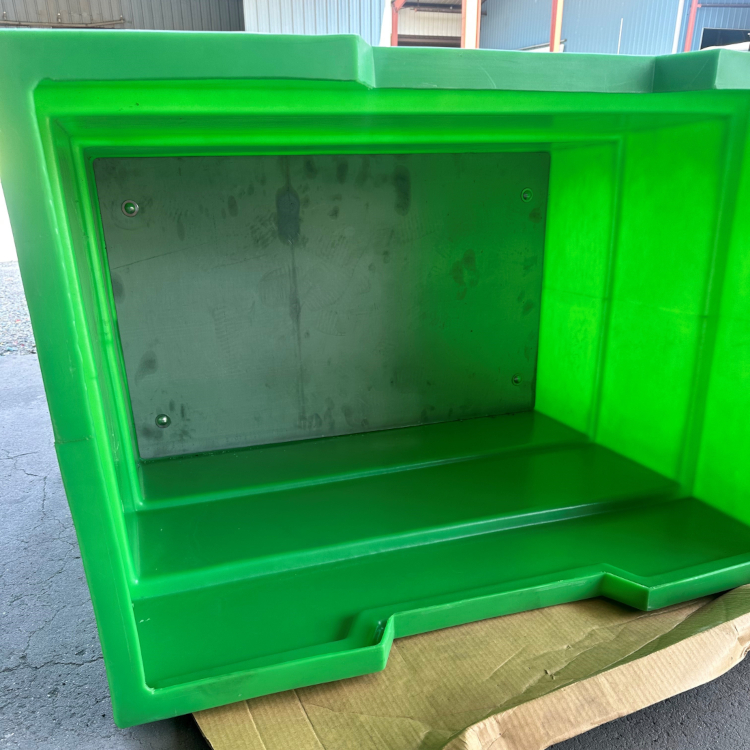

Caster configurations are available in 4 or 6 caster setups. A 12-gauge steel floor liner is also available for operations where the bottom takes the brunt of sharp or heavy loads. If you're unsure which spec fits your setup, let us know what you're loading and how you're moving it.
A rotator cart is a cart designed to be picked up by a forklift fitted with a rotator attachment. The attachment grabs the cart by the fork tubes, lifts it, and rotates it to dump the contents into a larger bin or roll-off below. The Grizzly SD Rotator stays on casters for floor collection, then gets picked up and emptied at a central dump point. No one has to tip it or shovel it out by hand.
The Grizzly SD Rotator the same cart with fork tubes added. If you do not need rotator dumping, the Grizzly SD Cart has the same capacity. If you want the option to dump with a forklift, this is the one to get.
Yes. The body is plastic and the base is painted metal, so it handles moisture better than plywood-base carts. An optional drain is available if fluid buildup is a concern.
